BIND (Berkeley Internet Name Daemon) name server

The exercise to perform

This exercise involves  two machines, physical or virtual. Make sure they::

 - are connected in a common local area network
 - have IP addresses on the interfaces by which they connect to it
 - can ping each other.

Log in to each machine as root. The BIND name server will run on the first machine. It will be configured to serve arbitrary IP addresses in return for arbitrary domain names. The second will designate the first as its name server, ask for one of the arbitrary names, and receive the corresponding address. The first is the "server" and the second the "client."

On the server, make sure BIND is installed:

systemctl  status  named

If you get a screen message like "not found" then you must install it:

dnf  install  bind   [ assumes an internet connection, which the machine won't necessarily have ]

We are going to prepare an absolute barebones (and pragmatically inadequate) configuration. If a default "named.conf" configuration file was installed, preserve it:

mv  /etc/named.conf  /etc/named.conf.org

Manually configure BIND from provided skeleton config files

Obtain the file dns-exercise.tar per your instructor. (You may find a copy of it in the /home/public directory of your remote server or your virtual machine. You can get a local copy of it here. In that case, transfer it to the computer on which you are performing this exercise.) Put it in your home directory. It contains two zone files and a BIND configuration file that references them. Create a temporary directory and extract these tar'ed files into it:

cd
mkdir temp-dns
cd temp-dns
tar  -xvf  ../dns-exercise.tar
ls -l

The files have the content shown below. They are templates or skeletons, for a configuration that has two zones. They contain capitalized words serving as tokens, for which you are to provide substitutes

 that you will choose.

"named.conf":

"SOMEZONES-FILE":

"ANOTHERZONES-FILE":

The 2 zones need names. Choose 2 names for them. The first zone will provide for 4 name-address mappings and the second zone for 3 of them. Choose 1a) a name for the first zone, 1b) 4 name-address pairs for its mappings, 2a) a name for the second zone, and 2b) 3 name-address pairs for its mappings. Pick whatever whatever you want  (but avoid names containing spaces or special characters).. Possible examples:

Or just roll your own. Make something up that's easy to remember.

Then, edit the files to substitute your particular choices wherever you see capitalized placeholder names in the files. For example, if in the second zone you would like to have a mapping of the name "milkyway" to the address "10.0.0.1" you would edit the line

ANOTHERZONE-NAME1  IN  A  ANOTHERZONE-ADDRESS1

 to become

milkyway  IN  A  10.0.0.1

Here is a complete example. I want my first zone to be named "red" and the second to be "blue". I want them to contain the following mappings:

I want these mappings to become operational in BIND. To accomplish that I simply do appropriate search-and-replace within my provided skeleton files. They end up looking like:

I could have done this edit job using an ordinary an interactive editor. In fact, I used sed ("stream editor") which is a command line tool to edit text programatically. I wrote the needed sed commands to make the text replacements and put them in a script. For reference, you can find the script at the bottom of the page. In this exercise you should use an interactive editor if you are comfortable with one. gedit is available and intuitive. But be aware of the sed option for dynamic, in-place search-and-replace and use it if you prefer.

Now, once you've fixed up the files, deploy them, to the locations where they will become operational::

cp  named.conf  /etc
cp  redfile  /var/named
cp  bluefile  /var/named

and start the BIND dns server:

systemctl  start  named  ( or possibly instead  /usr/sbin/named -u named^{* )}

Finally, make sure you know the server's IP address, for use on the client.

ifconfig  eth0 (or whatever is the name of the server's interface that connects to the client, if not "eth0")

On the client, appoint the new name server as the client's. That is, name it in /etc/resolv.conf. That file should contain a line like:

nameserver  <IP address of the new dns server>

(The /etc/resolv.conf file is an important networking file. It tells the computer, when it needs dns answers, which other computer to ask, identified by IP address.)

Now on the client:

dig  +short  venus.red

should return the address 2.2.2.2, but you use one of the names you chose and verify it returns the address you corresponded with it. And

dig  +short  tiger.blue

It should return the address 192.168.0.2, but you use your own data please. Give dig one of the names you chose and verify that it returns the address you corresponded with that name.

What to turn in:

at this point produce a screenshot showing both your client machine terminal window and server machine terminal window. In the server machine window, execute ifconfig on your interface to show its IP address. Then execute an netstat udp report to show that the nameserver (named) is active on port 53 (which dns uses). Then show the contents of one of your zone files (cat the file). In the client machine window show the content of the /etc/resolv.conf, revealing that the server machine is the one that the client machine resorts to for its dns queries. Then have the client resolve one of the names in the zone whose file you display in the server machine window. Do that twice, once using the dig tool, and again using the nslookup tool. Here is my sample screenshot, as a guide. Name your screenshot file dns.jpg or dns.png and put it in your assignments directory on the remote class server.

Automate with a graphical tool (webmin)

webmin is an interesting sidelight to this discussion. Install webmin if it is not already on your computer. Obtain the rpm file from which webmin can be installed. If you are using a class-supplied virtual machine, the webmin-1.630-1.noarch.rpm file may be found in the /home/public directory. Alternatively, one normally goes to webmin.com and downloads the latest-version rpm file.) To do the install, execute something like:

rpm  -Uvh  webmin-1.630-1.noarch.rpm   (the embedded version number in the rpm file's name may be different)

Once installed, webmin listens on your computer's ports (both tcp and udp) 10000, by default (check it with netstat). Webmin is graphical, so you need to be in your computer's GUI in order to use it. You login to webmin using "root," using the same password to log in to webmin as you do to log in to the machine, by default. In your graphical browser go to:

https://127.0.0.1:10000

which brings you to your local machine's copy of webmin, able to perform many administration tasks through the browser interface, including maintenance of your dns server (named). Once logged in, make menu choice "Servers" and following that "BIND DNS Server." Observe that the zone(s) you created above are known to webmin, shown under "Existing DNS Zones" at the bottom of the screen:

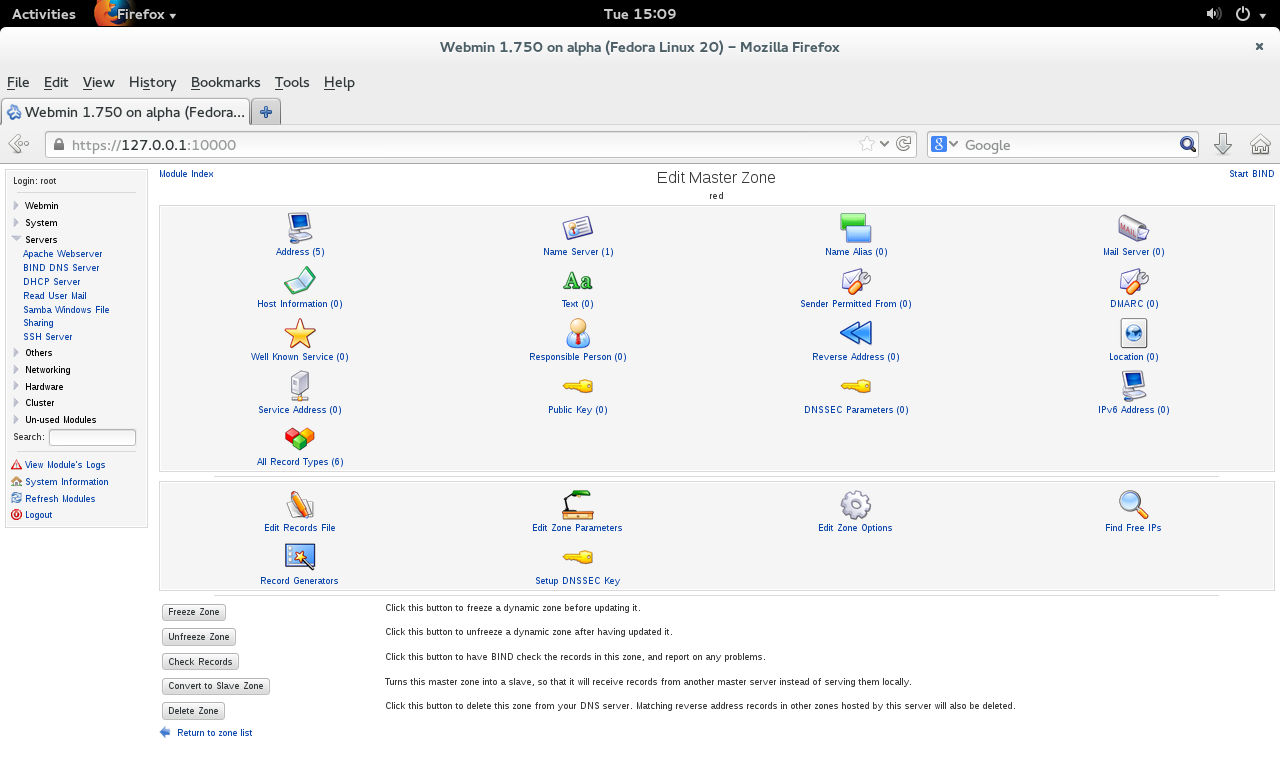

Click on one of the zones. The resulting screen offers icons allowing you to view and maintain the various record types that a zone file might contain:

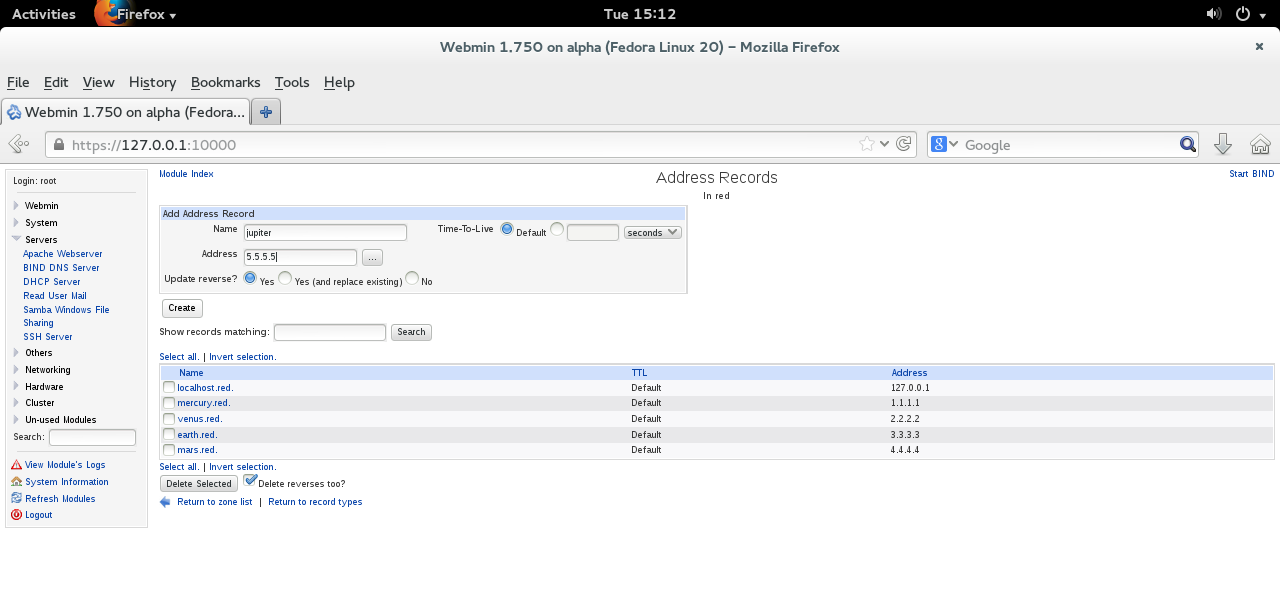

The main type of record is the address record. Click on the icon for "Address" records and view the several mappings you created manually above:

Let webmin add an additional address record/mapping for you. Enter the new mapping's name and address (choose whatever you like) into the "Name" and "Address" text boxes, them press the "Create" button. webmin now shows the additional record. From webmin's menu, Logout.

View the data that webmin inserted into your zone file. Mine, for zone "red" which contained records for mercury, venus, earth, and mars, now contains the new one from webmin for jupiter. The zone file /var/named/redfile looks like this:

red.    IN      SOA     ns.somewhere.com. admin@isp.com (
                        2
                        10800
                        3600
                        604800
                        86400 )
red.    IN      NS      ns.somewhere.com.

localhost IN    A       127.0.0.1
mercury IN      A       1.1.1.1
venus   IN      A       2.2.2.2
earth   IN      A       3.3.3.3
mars    IN      A       4.4.4.4
jupiter.red.    IN      A       5.5.5.5

webmin talks to you via the browser, then talks to configuration files such as dns zone files through backend programmatic editing scripts (in perl). Since it's debugged, a virtue is that it doesn't make typos or other human mistakes. This is particularly useful in maintaining dns config files since they are particularly sensitive to syntax and very easy to mess up.

Note as a detail that the new record does not fully parallel the old ones. We would expect to see:

mercury IN      A       1.1.1.1
venus   IN      A       2.2.2.2
earth   IN      A       3.3.3.3
mars    IN      A       4.4.4.4
jupiter IN      A       5.5.5.5

That's because while the new record is explicit, the old ones are implicit in that it's understood their names are extended by the first token in the SOA record, which here is "red." so that "mars" operationally becomes "mars.red.". webmin chooses not to rely on such features.

Clean up

When finished, to restore the original BIND configuration on the server:

systemctl  stop  named
cp  /etc/named.conf.org  /etc/named
rm  -f  ~/temp-dns/*
rmdir  ~/temp-dns

Also delete the zone files you added to /var/named. And on the client remove the line you added to /etc/resolv.conf.

^* If "service named bind" gives error messages about not finding the zone files redfile and bluefile, try the alternative direct invocation of named shown. The purpose of calling  named directly  is to avoid the options with which the "service named bind" script does so. Some versions of Fedora linux have used named's chroot feature, which locates zone files elsewhere. The script invokes this feature. But this exercise locates the zone files in their traditional place. chroot is a good idea (it's a security feature) but one thing at a time and let's keep things tutorially simple. Incidentally, subsequent named versions have instituted other ways to achieve the same security so using chroot with named is now deprecated (2015).

My script using sed to edit the skeleton files, rather than an interactive editor, for reference:

# change names then addresses used for the the mappings in SOMEZONES-FILE
sed -i s/SOMEZONE-NAME1/mercury/ SOMEZONES-FILE
sed -i s/SOMEZONE-NAME2/venus/ SOMEZONES-FILE
sed -i s/SOMEZONE-NAME3/earth/ SOMEZONES-FILE
sed -i s/SOMEZONE-NAME4/mars/ SOMEZONES-FILE

sed -i s/SOMEZONE-ADDRESS1/1.1.1.1/ SOMEZONES-FILE
sed -i s/SOMEZONE-ADDRESS2/2.2.2.2/ SOMEZONES-FILE
sed -i s/SOMEZONE-ADDRESS3/3.3.3.3/ SOMEZONES-FILE
sed -i s/SOMEZONE-ADDRESS4/4.4.4.4/ SOMEZONES-FILE

# change the name used for the zone in the SOMEZONES-FILE
sed -i s/SOMEZONE/red/ SOMEZONES-FILE

# change names then addresses used for the mappings in ANOTHERZONES-FILE
sed -i s/ANOTHERZONE-NAME1/lion/ ANOTHERZONES-FILE
sed -i s/ANOTHERZONE-NAME2/tiger/ ANOTHERZONES-FILE
sed -i s/ANOTHERZONE-NAME3/bear/ ANOTHERZONES-FILE

sed -i s/ANOTHERZONE-ADDRESS1/192.168.0.1/ ANOTHERZONES-FILE
sed -i s/ANOTHERZONE-ADDRESS2/192.168.0.2/ ANOTHERZONES-FILE
sed -i s/ANOTHERZONE-ADDRESS3/192.168.0.3/ ANOTHERZONES-FILE

# change the name used for the zone in the ANOTHERZONES-FILE
sed -i s/ANOTHERZONE/blue/ ANOTHERZONES-FILE

# change the names used for the zone files in named.conf
sed -i s/SOMEZONES-FILE/redfile/ named.conf
sed -i s/ANOTHERZONES-FILE/bluefile/ named.conf

# change the names used for the zones in named.conf
sed -i s/SOMEZONE/red/ named.conf
sed -i s/ANOTHERZONE/blue/ named.conf

# rename zone files to agree with the names used for them in named.conf
mv SOMEZONES-FILE redfile
mv ANOTHERZONES-FILE bluefile
